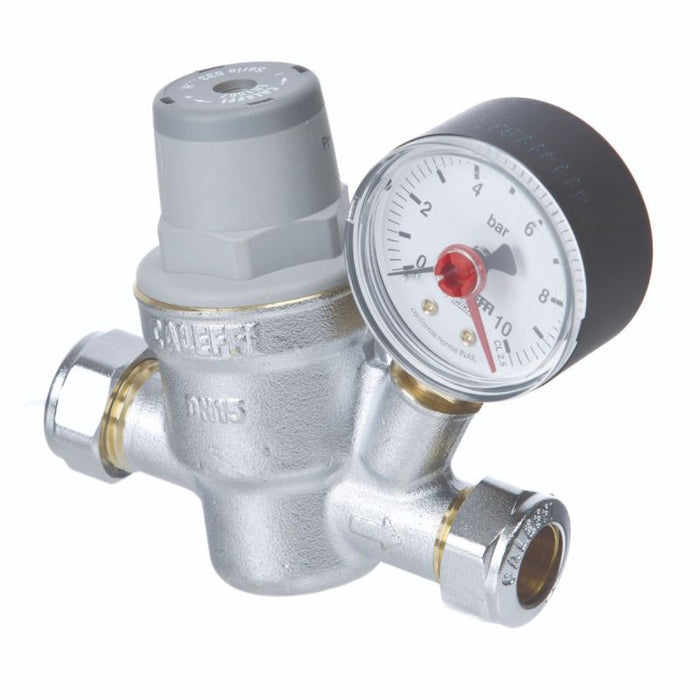

Altecnic Caleffi 15mm Prescal Series 533 High Temp Pressure Reducing Valve with Pressure Gauge 533841H
Description
This is a stock item. Order by 5pm Monday to Thursday and 4.30pm Friday for same day despatch.
PRESCAL - SERIES 533 HIGH TEMPERATURE PRESSURE REDUCING VALVE WITH COMPRESSION ENDS (WITH PRESSURE GAUGE)
The series 533 high performance range of pressure reducing valves is designed for domestic and semi-commercial applications.
Features and benefits
- Max inlet pressure: 16 bar
- Max temperature: 80°C
- Outlet adj range: 1 - 5.5 bar
- Pressure gauge connection: G¼˝
- EN 1567 approved
Specification
Size: 15mm
Connections: Compression
Materials: DZR chrome plated
Medium: Potable water
Max Inlet Pressure: 16 Barg
Outlet Pressure Setting Range: 1 to 5.5 Barg
Max Temperature: +80 degC
Product Code: 533841H
Notes: WRAS approved, Supplied with pressure gauge
Datasheets
Altecnic Caleffi 15mm Prescal Series 533 High Temp Pressure Reducing Valve 533841H Datasheet
