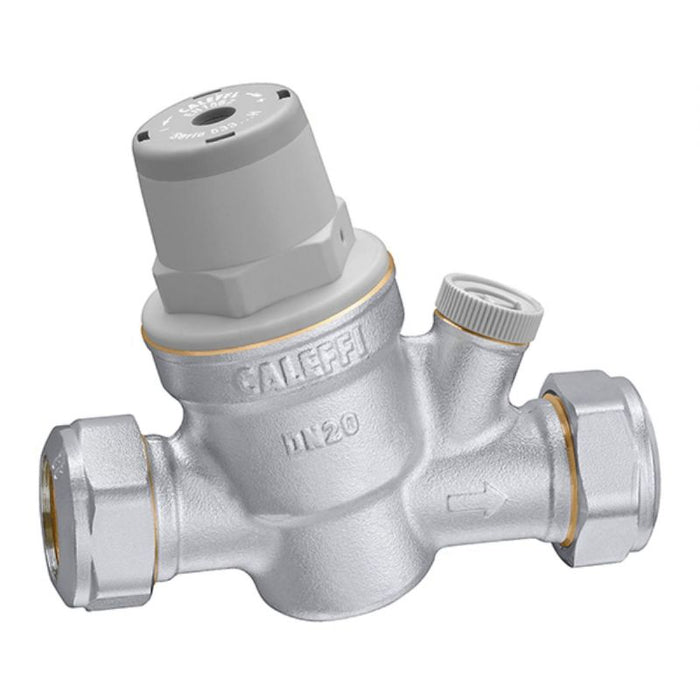

Altecnic Caleffi 22mm Prescal Series 533 High Temp Pressure Reducing Valve with Gauge Port 533751H
Description
Typical lead time is 3 to 5 working days. We'll contact you if this changes.
PRESCAL - SERIES 533 HIGH TEMPERATURE PRESSURE REDUCING VALVE WITH COMPRESSION ENDS (WITH GAUGE PORT)
The series 533 high performance range of pressure reducing valves is designed for domestic and semi-commercial applications.
Features and benefits
- Max inlet pressure: 16 bar
- Max temperature: 80°C
- Outlet adj range: 1 - 5.5 bar
- Pressure gauge connection: G¼˝
- EN 1567 approved
Specification
Size: 22mm
Connections: Compression
Materials: DZR chrome plated
Medium: Potable water
Max Inlet Pressure: 16 Barg
Outlet Pressure Setting Range: 1 to 5.5 Barg
Max Temperature: +80 degC
Product Code: 533751H
Notes: WRAS approved, With gauge port
Datasheets
Altecnic Caleffi 22mm Prescal Series 533 High Temp Pressure Reducing Valve 533751H Datasheet
