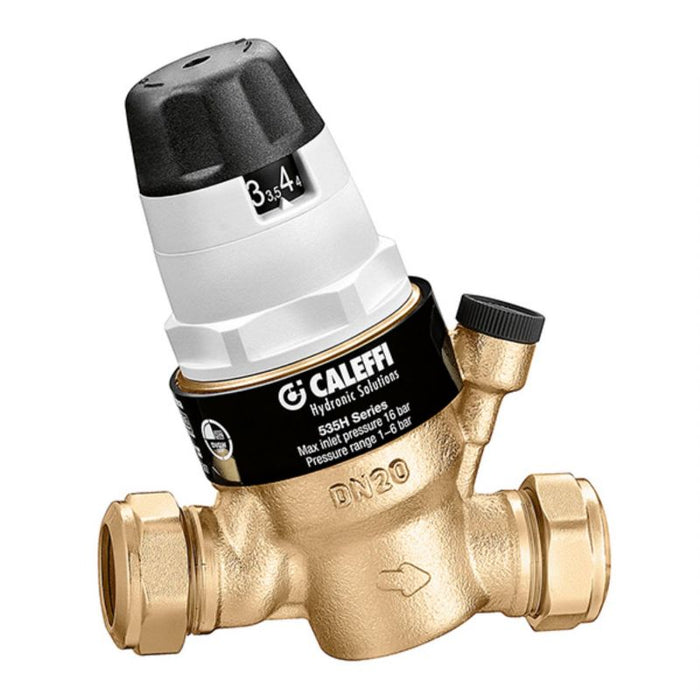

Altecnic Caleffi 15mm Prescal Series 535 High Temp Pressure Reducing Valve with Gauge Port 535015H
Description
Typical lead time is 3 to 5 working days. We'll contact you if this changes.
PRESCAL® - SERIES 535 HIGH PERFORMANCE DIAL UP PRESSURE REDUCING VALVE (WITH GAUGE PORT)
Pressure reducing valves are installed in residential water systems to reduce and stabilise inlet pressures from mains water supplies or boosted water systems, which generally are too high and variable for domestic appliances to function correctly.
The 535H series is specially designed for hot and cold services in houses or apartments to equalise the hot or cold water supplies or both and prevent excessive pressure at outlets such as taps and showers.
Features and benefits
- Max inlet pressure: 25 bar
- Max temperature: 80°C
- Outlet adj range: 1 - 6 bar
- Pressure gauge connection: G¼”
- Factory setting: 3 bar
- Certification: BS EN 1567
- Static control
Specification
Size: 15mm
Connections: Compression
Materials: DZR chrome plated
Medium: Potable water
Max Inlet Pressure: 25 Barg
Outlet Pressure Setting Range: 1 to 6 Barg
Max Temperature: +80 degC
Product Code: 535015H
Notes: WRAS approved, With gauge port
Datasheets
Altecnic Caleffi 15mm Prescal Series 535 High Temp Pressure Reducing Valve 535015H Datasheet
