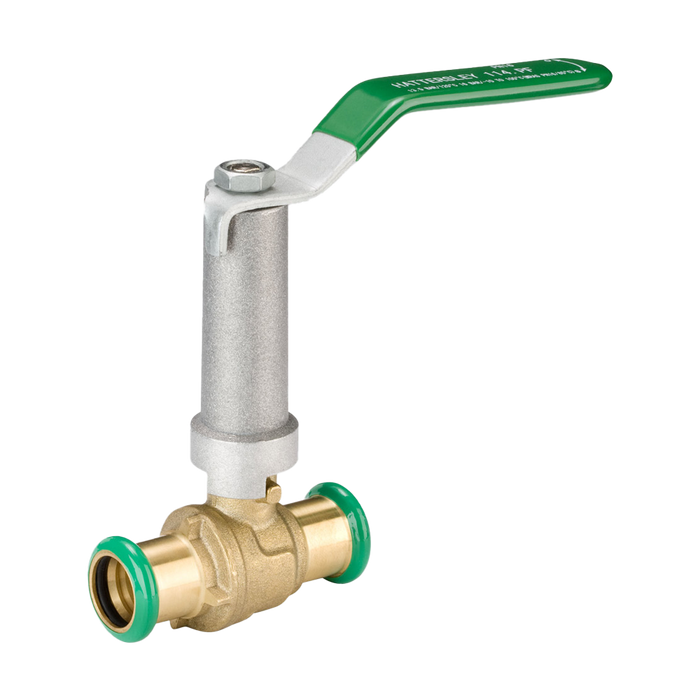

Hattersley Fig 114EXT.PF PN16 Integral Ended Press Fit Ball Valve - Extended Stem
Typical lead time is 3 to 5 working days. We'll contact you if this changes.
Description
Fig. 114EXT.PF Integral Ended Press-Fit Range DZR Ball Valve - Extended Stem
Ball Valves are light, compact units, which are easy to install and operate, giving low flow
resistance and 100% bubble tight shut off. Hattersley WRAS Approved Press-Fit integral
ended Ball Valves, are designed for both new-build and refurbishment projects, and
can be installed on a variety of pipe materials. The Quarter-turn Bi Directional flow valve is
suitable for isolation applications (open or closed).
Features & Benefits
• Quarter-turn full-bore isolation valve complete with integral M-Profile press-fit connectors, for reliable sealing
• O-Ring features define leak paths, to identify unpressed joints
• Press indicators which surround the pressing contours, give visual identification of
a pressed joint
• Suitable for hard and half hard tubes to EN 1057, precision carbon steel tubes to EN
10305-3, and precision stainless steel tubes EN 10312, to meet a variety of application
requirements
• Quickly and easily installed using a Press-Fit tool, with site labour time reduced
by 20% - 25%
• Available in a variety of operators, to meet application requirements
• WRAS Approved to 85°C for use on wholesome (potable) water applications
• Available in sizes 1/2" to 2"
Material Specification
• DZR Brass
Temperature Range
• -10 to 120°C
• WRAS Approved to 85°C
Operator
• Extension stem lever - Fig.114EXT.PF
Specification
DZR Brass (CW 602N) bodied end-entry Ball Valve. Full bore. Quarter-turn, Bi Directional flow, lever, extension lever, lockshield or t-handle operated. DZR brass ball chrome plated (15mm - 18mm) and stainless steel ball (22mm - 54mm). PTFE seats, blowout proof stem. Integrated M-Profile Press-Fit ends, featuring visual pressed indicator and ‘fail safe’ O-Ring defined leak paths. Rated PN16, (Maximum temperature 120˚C, WRAS Approved to 85˚C). Suitable for hard and half hard copper tubes to EN 1057, precision carbon steel tubes to EN 10305-3, and precision stainless steel tubes EN 10312.
Datasheet
Hattersley Fig 114EXT.PF PN16 Integral Ended Press Fit Ball Valve - Extended Stem Datasheet
