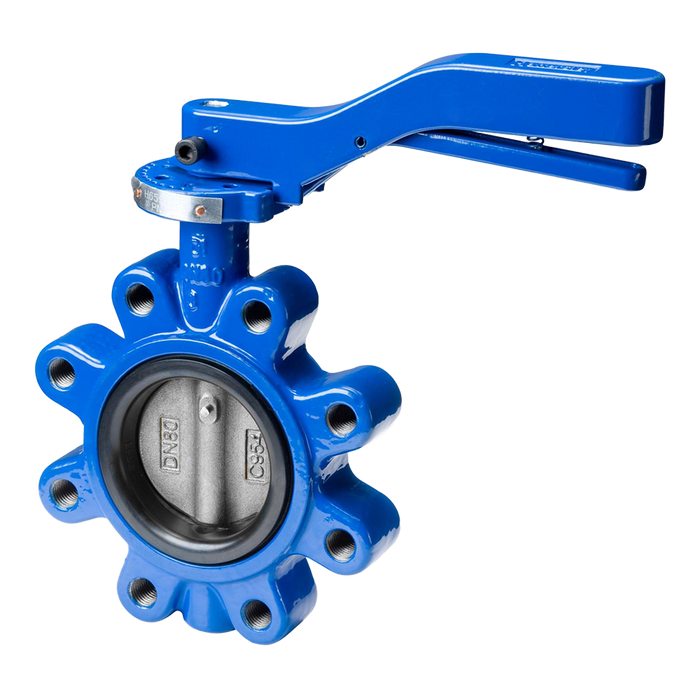

Hattersley Fig 4923 PN25 Butterfly Valve - Lever Operated

Typical lead time is 3 to 5 working days. We'll contact you if this changes.

Description

Fig. 4923 Butterfly Double Regulating Valves - Lever Operated

Features & Benefits
• Robust, Ductile Iron valve bodies for long service life
• Stainless Steel discs as standard
• Suitable for wide temperature range -10°C to 120°C
• Fully lugged for secure installation
• Rated to PN25
• Lever and Gearbox operator options
• Available in sizes DN50 to DN150

Material Specification

• Ductile Iron

Pressure/Temperature Rating

• 25 bar from -10°C to 120°C

Specification

• Medium: Group 2 Liquids
• Flanges: Fully Lugged To BS EN 1092-2
• Face To Face: BS EN 558
• Design Standard: BS EN 593: 2009
• Test And Inspection: Standard BS EN12266-1
• Mounting Flange ISO 5211-2001

Datasheet

Hattersley Fig 4923 PN25 Butterfly Valve - Lever Operated Datasheet
