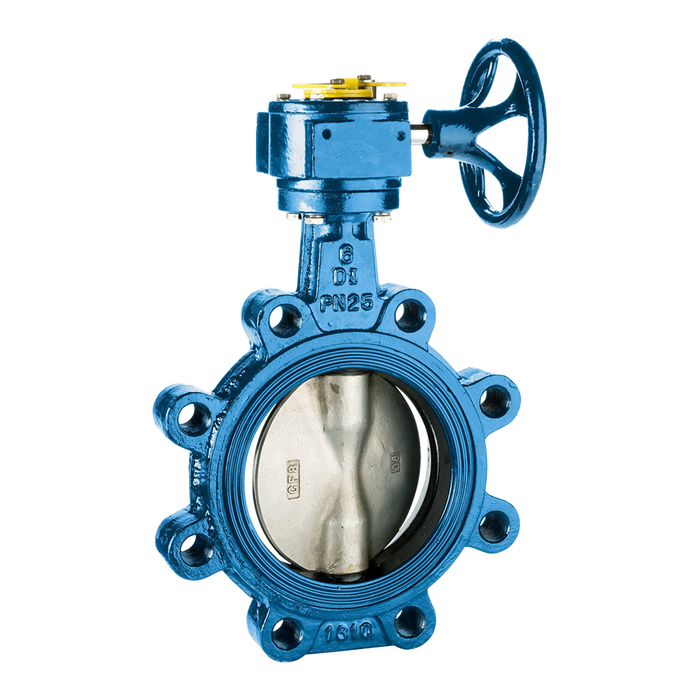

Hattersley FIG 4925G PN25 Butterfly Valve - Gearbox Operated

Typical lead time is 3 to 5 working days. We'll contact you if this changes.

Description

Fig 4925G Fully-lugged Gearbox Operated Butterfly Valve

Features & Benefits
• Robust, ductile iron valve bodies for long service life
• Stainless steel disc for improved strength and a wide range of applications
• Suitable for wide temperature range -10°C to 120°C
• Fully lugged for secure installation
• Rated PN25 for higher pressure applications
• Lever (4925) and Gearbox (4925G) options available
• Extended size range for application requirements
• Dead End Service: Suitable for Bi directional end-of-line service at 25 Bar without the need of downstream backing flanges
• Available in sizes DN65 to DN300

Material Specification

• Ductile Iron

Pressure/Temperature Rating

• 25 bar from -10°C to 120°C

Specification

• Medium: Group 2 Liquids
• Flanges: Fully Lugged To BS EN1092-2
• Face to face conforms to BS EN 558
• Design Standard: BS EN 593 2009
• Test And Inspection Standard: BS EN 12266-1
• Mounting Flange: ISO 5211-2001

Datasheet

Hattersley FIG 4925G PN25 Butterfly Valve - Gearbox Operated Datasheet
