Hattersley Fig 1000 PN20 Metering Station
Typical lead time is 3 to 5 working days. We'll contact you if this changes.
Description
Fig. 1000 DZR Brass Metering Stations
Features & Benefits
• Precise and accurate measurement, conforming to BS 7350:1990
• Dezincification resistant material preventing corrosion cracking and fungal growth
• Flow Measurement Device is suitable for systems where pipes have been sized on the
basis that pipe frictional losses lie in the range 100 to 400 Pa/m
• WRAS Approved for use with potable water up to 85°C

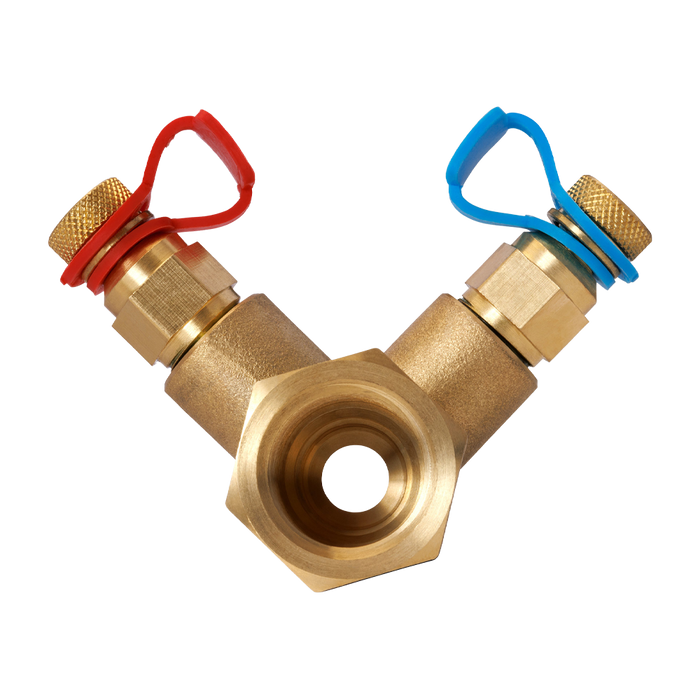

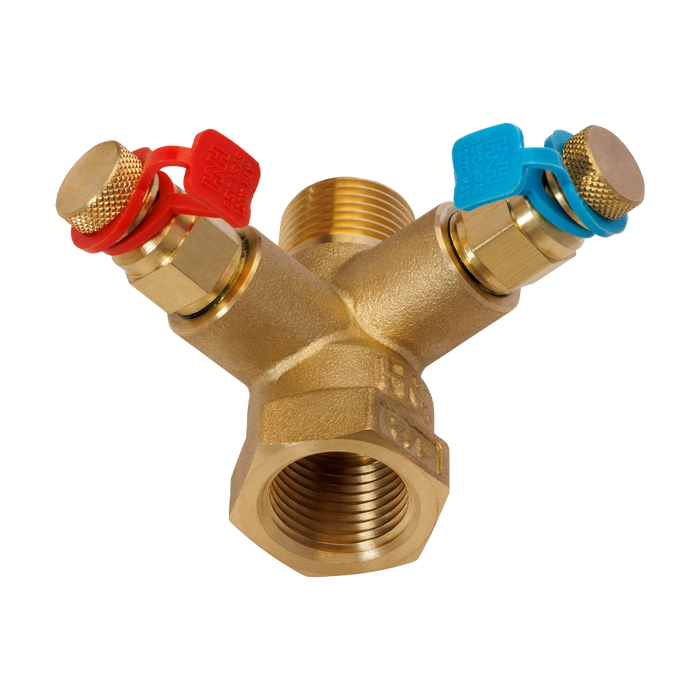

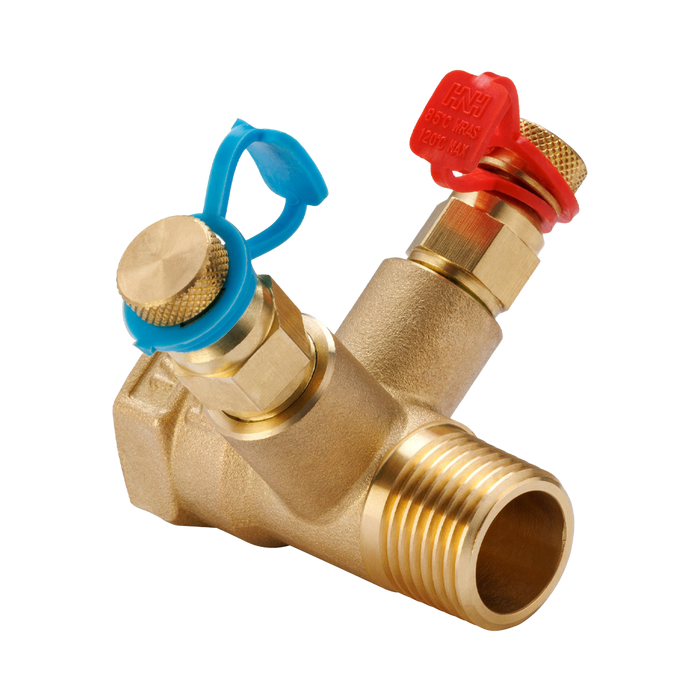

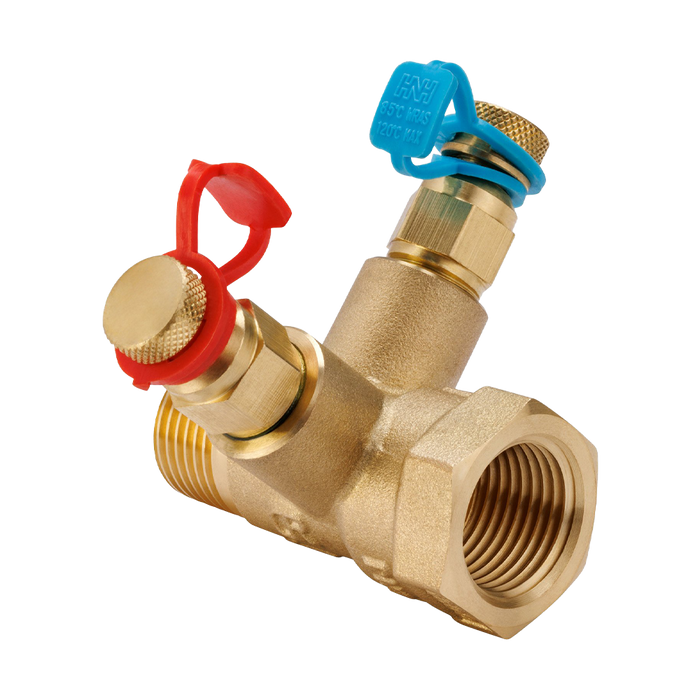

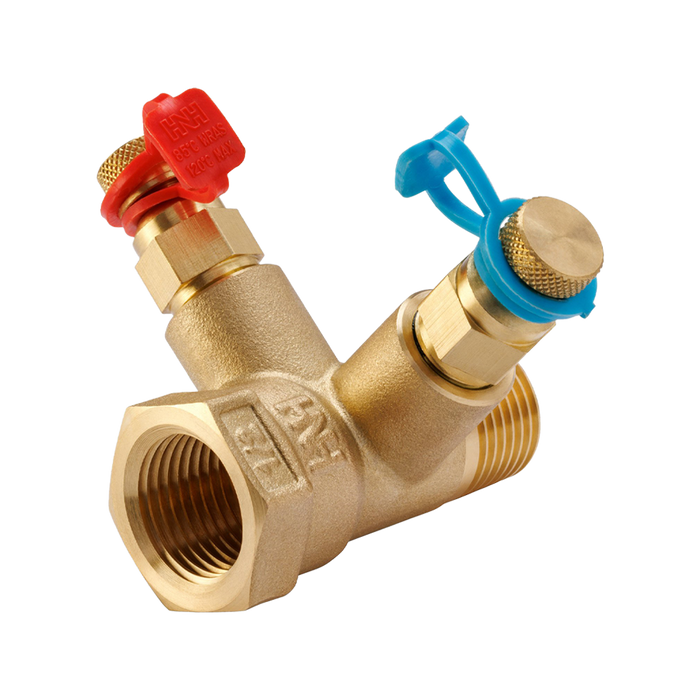

• Supplied with red and blue test points for upstream and downstream port identification
• Flow measurement accuracy of ±5%
• Available in sizes 1/2" to 2"
Pressure/Temperature Rating
• Threaded Ends
• PN25 Series B
• 15 bar at 120ºC
• 25 bar from -10 to 120ºC
Test Pressures
• Shell: 30 bar
Specification
• Conforms to BS 7350:1990.
• WRAS Approved Product up to 85°C.
• Supplied fitted with two Figure 631 test points
• Figure 1000 end connections threaded to BS EN 10266 (ISO 7-1) formerly BS 21.
• Taper female with the exception of the 1/2" inlet which is parallel.
