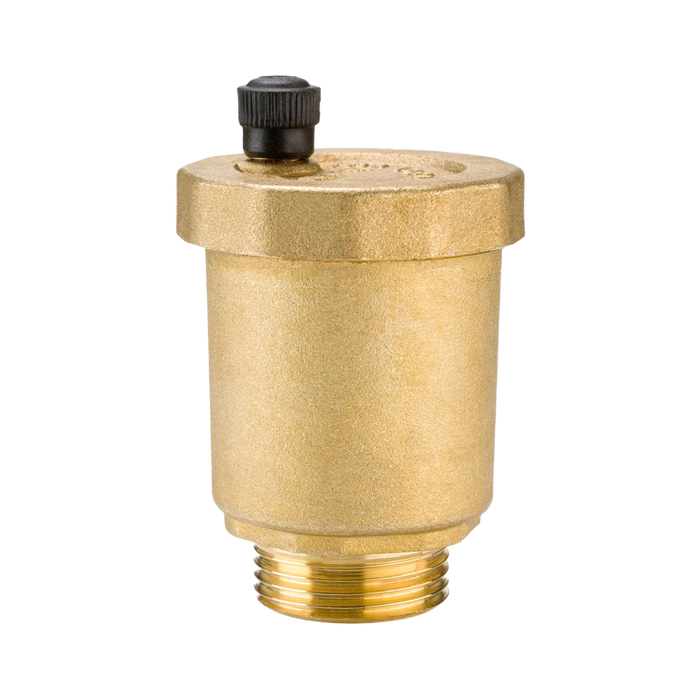

Hattersley Fig 775 PN10 Automatic Air Vent

This is a stock item. Order by 5pm Monday to Thursday and 4.30pm Friday for same day despatch.

Description

Fig. 775 Automatic Air Vent

Features & Benefits
• Removes inevitable potentially dangerous air trapped in system
• Simplifies the venting process
• Saves time and costs
• WRAS approved for closed circuit use only
• A shut-off valve option is available in size 1/2 inch (Fig. 776)
• Conforms to design standard BS EN 1074-4
• Sizes available 1/2" to 1"

Material Specification

• Brass

Pressure/Temperature Rating

• Fig. 775 - 10 bar at 120°C

Maximum Discharge Pressure

• 7 bar

Specification

• Brass body and cover
• Polypropylene float
• EPDM seals
• WRAS approved for closed circuit use only
• BSP parallel thread
• Fig. 776 Shut-Off Valve option available in size 1/2"

Datasheet

Hattersley Fig 775 PN10 Automatic Air Vent Datasheet
