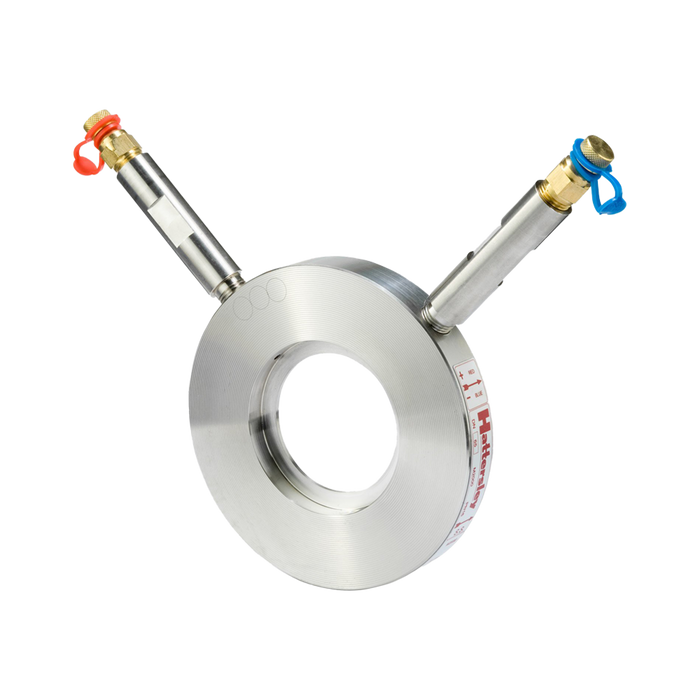

Hattersley Fig M2000 PN16 Metering Station
Typical lead time is 3 to 5 working days. We'll contact you if this changes.
Description
Fig. M2000 Stainless Steel Metering Station
Features & Benefits
• Compact, wafer design for fitting in tight spaces
• Accurate flow measurement
• Supplied with red and blue test points for upstream and downstream port identification
• Accuracy of flow measurement at normal velocities is ±5%
• WRAS Approved for drinking water applications in sizes DN65 to DN150
• Available in sizes 50mm to 600mm
Material Specification
• Stainless Steel
Pressure/Temperature Rating
• 16 bar from -10 to 120ºC
• Note: The Test Point Figure 631 has a maximum working temperature of 120ºC.
• For higher temperature requirements contact Safety Valves Online sales team.
Test Pressure
• Shell: 24 bar
Specification
• Kitemarked to BS 7350:1990
• Outside diameter locates metering station centrally on the relevant BS EN 1092-2 PN16 flange bolting
• Compatibility with other flanges available
• Supplied complete with extensions and Figure 631 test points – reference Fig. 631 data sheet for further detail
• Flow charts available
• Use with Figure MH733 to make Commissioning Set MH2733
