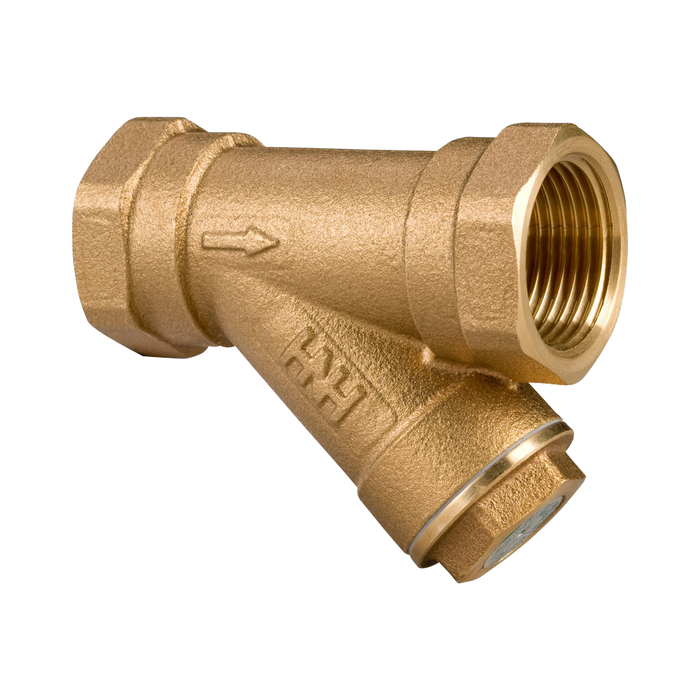

Hattersley Fig 817 PN16 Strainer

Typical lead time is 3 to 5 working days. We'll contact you if this changes.

Description

Fig. 817 Bronze Y-Type Strainer

Features & Benefits
• Robust and high quality bronze body
• Streamlined flow contours minimise pressure drop
• Compact design with short face to face
• Perforated stainless steel screen
• Captive asbestos-free non-stick gasket
• Comprehensive flow characteristics available
• Available in sizes 1/2" to 2"

Pressure/Temperature Rating

• PN16
• 16 bar -10º to 100ºC
• 7 bar at 170ºC
• For WRAS approval -10 to 85°C

Test Pressures (Hydraulic)

• 6 bar air

Specification

• Bronze body
• 304 stainless steel
• End connections threaded to BS EN 10266 (BS21 Taper ISO R7) & B1.20.1 ANSI

Note

• WRAS approved product

Datasheet

Hattersley Fig 817 PN16 Strainer Datasheet
